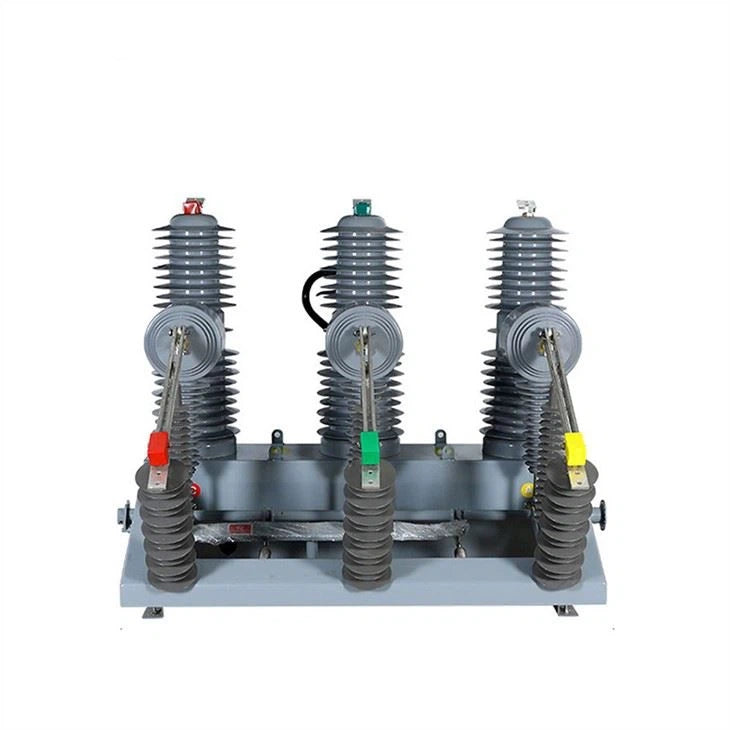

ZW32-40.5
ZW32-40.5kV、35kV、33kV Outdoor Vacuum Circuit Breaker （ZW32-40.5F、ZW32-40.5、ZW32-40.5G） adopts a uniquely designed one-piece solid-sealed pole and a highly reliable operating machine structure. The device is mainly used in medium-voltage overhead line power grids for dividing and combining load current, overload current and short-circuit current.
The upper vacuum circuit breaker is a new 35KV outdoor high-voltage vacuum circuit breaker that replaces the ZW7 vacuum circuit breaker. ZW32 is the miniaturization of ZW7, which is safer and more stable. ZW32-40.5 can also use permanent magnet operating mechanism, cooperate with automation equipment, GPRS, GSM and other remote communication functions to achieve four remote functions such as remote signaling, remote measurement, remote adjustment, and remote control.
Model Description
Z:Vacuum circuit breaker
W:Outdoor
32:Design Number
40.5:Rated voltage:40.5kV、35kV、33kV
▢:F:intelligeht type/blank(mannual type)/G:disconnector type
▢: Rated current:1250A、1600A
▢: Rated short-circuit breaking current:20kA、31.5kA
Working Environment：
1. Ambient air temperature: -30°C~+60°C;
2. Altitude: no more than 3000 meters;
3. The wind speed does not exceed 34m/s;
4. Contamination level: IV;
5. Storage temperature -40°C~+85°C;
Vibration or ground movement from outside the switchgear and control equipment is negligible.
Main Technical Parameters
|
Parameter |
unit |
value |
|
Rated voltage |
kV |
40.5、35、33 |
|
Rated current |
A |
1250、1600 |
|
Rated frequency |
Hz |
50/60 |
|
Power frequency withstand voltage 1min (wet) (dry) interphase, ground/to fracture |
kV |
80、95/95 |
|
Lightning impulse withstand current (peak value) phase-to-phase, to ground/to fracture |
kV |
185 |
|
Rated short-circuit breaking current |
kA |
25、31.5 |
|
Rated peak withstand current |
kA |
63、80 |
|
Rated short-circuit making current (peak value) |
kA |
63、80 |
|
4s short-time withstand current |
kA |
25、31.5 |
|
Rated operating cycle |
O-0.1s-CO-3s-CO-6sCO-60s recover |
|
|
Rated short-circuit current breaking times |
30 |
|
|
Mechanical life |
10000 |
|
|
Mechanism Control Voltage |
V |
AC/DC220 |
|
Secondary circuit 1min power frequency withstand voltage |
kV |
2 |
Structure And Mounting Dimensions
Product Real Shot
FAQ:
Q1:Could I add a power transformer (PT) on outdoor Vacuum Circuit Breaker ?
A1:Yes,of course.You can add PT, isolation switches, intelligent controllers, etc..
Customized according to your needs.
Q2:Can I order a ZW32-40.5kv、35kV、33kV Outdoor Vacuum Circuit Breaker sample?
A2:Yes, we accept any sample orders
Q3: What's the rated current for this ZW32-40.5kv、35kV、33kV Outdoor Vacuum Circuit Breaker?
A3: 630A/1000A/1250A/1600A/2000A/2500A.
