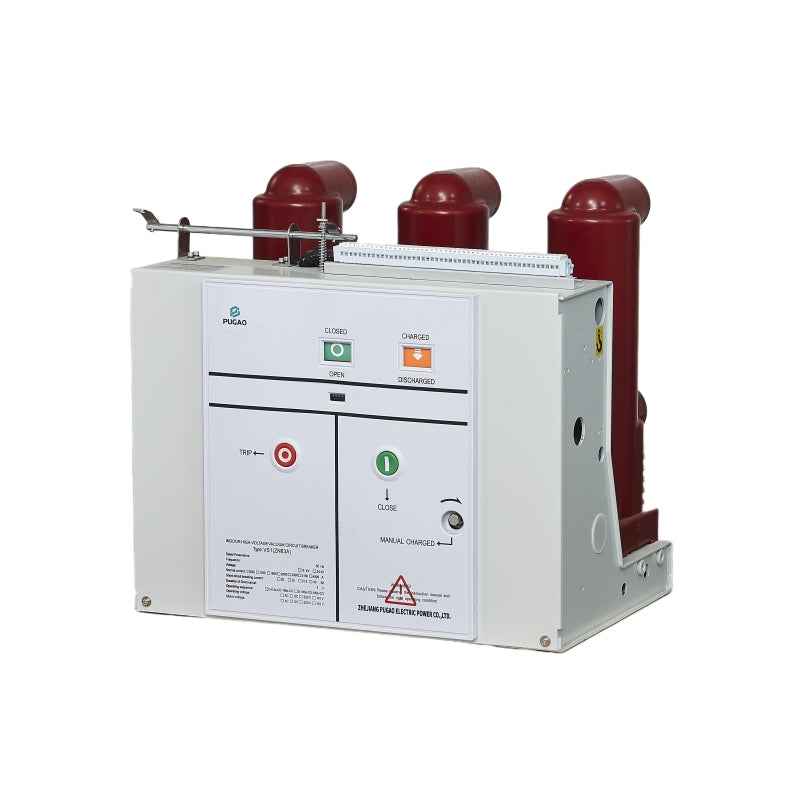

ZN63-24 Vacuum Circuit Breaker
ZN63-24 Vacuum Circuit Breaker（VS1） is mainly made of solid-sealed poles, and the operating mechanism is optimized to greatly improve the insulation reliability, mechanical reliability and breaking performance of the circuit breaker, and truly achieve the main circuit maintenance-free and Longer mechanical and electrical life; forming system
Listed products to meet different usage requirements.
The installation form of ZN63-24（VS1） Vacuum Circuit Breaker in the switch cabinet can be either fixed type or handcart type.
Model Description
Z:Vacuum circuit breaker
N:Indoor
63:Design Number
24:Rated voltage:24kV
▢: Rated current:630A、1250A、1600A、2000A、2500A、3150A
▢: Rated short-circuit breaking current:20kA、25kA、31.5kA
Working Environment：
1. Ambient air temperature: upper limit +40 degrees, lower limit -40 degrees;
2. Altitude: ≤2000m (if the altitude increases, the rated insulation level will be increased accordingly);
3. Wind pressure: no more than 700Pa (equivalent to wind speed of 34m/s);
4. Earthquake intensity: no more than 8 degrees;
5. Contamination level: Ⅳ level;
6. Maximum daily temperature difference: no more than 25 degrees;
7. Relative humidity: the daily average is not more than 95%, and the monthly average is not more than 90%;
8. Places without inflammability, explosion hazard, chemical corrosion and severe vibration.
Main Technical Parameters
|
Number |
Parameter |
Unit |
Value |
|
|
1 |
Rated voltage |
kV |
24 |
|
|
2 |
Rated insulation level |
Rated short-time power frequency withstand voltage (1min) |
kV |
65、79 |
|
Rated lightning impulse withstand voltage |
kV |
125、145 |
||
|
3 |
Rated frequency |
Hz |
50 |
|
|
4 |
Rated current |
A |
630、1250、1600、 2000、2500、3150 |
|
|
5 |
Rated short-circuit breaking current |
kA |
20 、25 、31.5 |
|
|
6 |
Rated short-time 4s withstand current |
20、 25、 31.5 |
||
|
7 |
Rated short-circuit making current |
50、 63、 80 |
||
|
8 |
Rated peak withstand current |
50 、63、 80 |
||
|
9 |
Nominal Operation Sequence |
|
O-0.3s-CO--180s-CO |
|
|
10 |
Rated short-circuit breaking current breaking times |
time |
20 |
|
|
11 |
Rated cable charging breaking current |
A |
31.5 |
|
|
12 |
Rated single capacitor bank breaking current |
A |
630 |
|
|
13 |
Rated back-to-back capacitor bank breaking current |
A |
400 |
|
|
14 |
Mechanical life |
time |
10000 |
|
|
15 |
The moving and static contacts allow the accumulated thickness of wear |
mm |
3 |
|
Structure And Mounting Dimensions
FAQ:
Q1. How many installation types are there for this ZN63-24 24kv Vacuum Circuit Breaker （VS1）?
A1.Three types :Fixed type/Handcart type/Side loading type
Q2.Can I order a ZN63-24 Vacuum Circuit Breaker （VS1） sample?
A2:Yes, we accept any sample orders
Q3. How about rated voltage of 24kv Vacuum Circuit Breaker （VS1）?
A3:The rated voltage is 24kv.
