Item:ZN63-12 Vacuum Circuit Breaker①Strong arc extinguishing ability②Long electrical life③Small size and light weight④Anti-condensation, maintenance-free⑤Protection and control circuits
Vendor: pugao
Availability: Many In Stock
Product Type: Indoor Vacuum Circuit Breaker
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
ZN63-12 Vacuum Circuit Breaker

ZN63-12 Vacuum Circuit Breaker

$0.00
ZN63-12 Vacuum Circuit Breaker
ZN63-12 Vacuum Circuit Breaker
ZN63-12 Vacuum Circuit Breaker
ZN63-12 Vacuum Circuit Breaker
ZN63-12 Vacuum Circuit Breaker

ZN63-12 Vacuum Circuit Breaker

$0.00

    ZN63-12 Vacuum Circuit Breaker

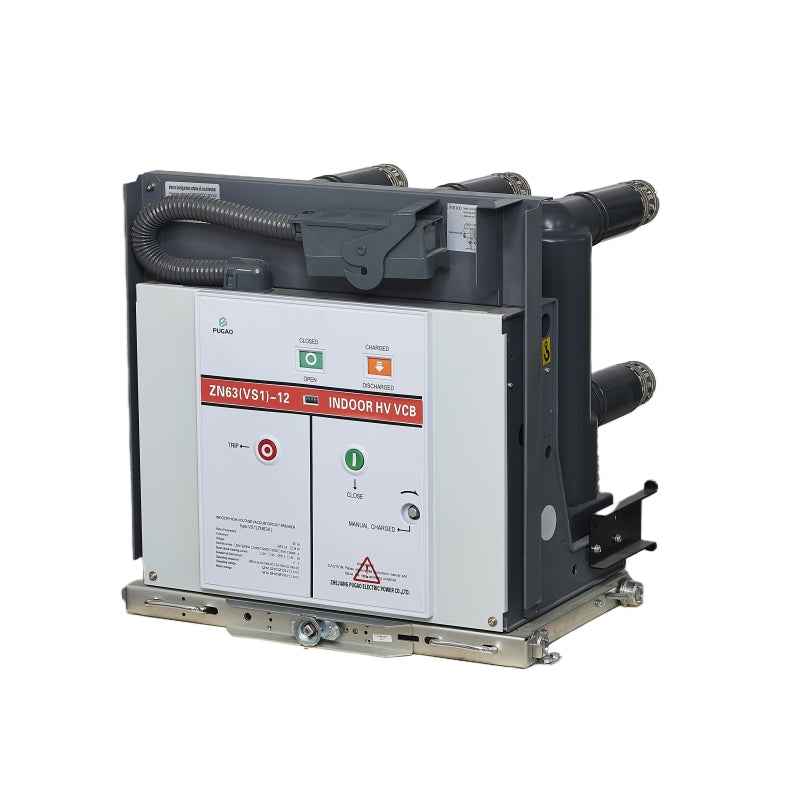

    ZN63-12  Vacuum Circuit Breaker （VS1），ZN63-12（VS1）, ZN63-12M（VS1） circuit breaker adopts the integrated design of the spring operating mechanism and the circuit breaker body, which can not only be used as a fixed installation unit, but also can be assembled with the chassis to form a handcart unit.



    The installation form of ZN63-12  Vacuum Circuit Breaker（VS1） ，ZN63-12（VS1）, ZN63-12M（VS1）  in the switch cabinet can be either side-mounted, fixed or handcart.



    VS1 indoor vcb

    Model Description



    ZN63-12 Vacuum Circuit Breaker

    Z:Vacuum circuit breaker

    N:Indoor

    63:Design Number

    12:Rated voltage:12kV

    ▢: M:Permanent magnet mechanism/blank(mannual type)

    ▢: Rated current:630A、1250A、1600A

    ▢: Rated short-circuit breaking current:20kA、25kA、31.5kA、40kA



    Working Environment：



    2. The ambient air temperature does not exceed + 40°C, the daily average temperature does not exceed +35°C, and the lowest ambient temperature. Air temperature is -15°C. The effect of solar radiation can be ignored.

    3. The altitude should not exceed 1000m.

    4. Vibration or ground movement from outside the switchgear and control equipment and the normal operation of the equipment formula has no apparent relationship.

    5. The surrounding air is not significantly affected by dust, smoke, corrosive and/or flammable gases, vapors air or salt spray pollution.



    Main Technical Parameters



    Number

    Parameter

    Unit

    Value

    1

    Rated voltage

    kV

    12

    2

    Rated frequency

    Hz

    50

    3

    Rated insulation level

    Rated short-time power frequency withstand voltage (1min)
    (interphase, relative ground, fracture)

    Hz

    42

    Rated lightning impulse withstand voltage
    (phase, phase, port)

    kV

    75

    4

    Rated current

    A

    630

    630

    1250

    1600

    5

    Rated short-circuit breaking current

    kA

    20 、25 、31.5 、40

    6

    Rated short-time withstand current (rated short-time thermal stability current)

    		 kA

    20 、25 、31.5 、40

    7

    Rated short-circuit making current

    		 kA

    50、 63、 80 、100

    8

    Rated peak withstand current (rated dynamic stable current)

    50、 63、 80 、100

    51、

    9

    Rated short-circuit duration (rated thermal stabilization time)

    S

    4

    10

    Rated short-circuit current breaking times

    　

    O-0.3s-CO--180s-CO

    O-180s-CO-180s-CO( 40kA)

    11

    Mechanical life

    time

    30、20( 40kA)

    12

    Rated single capacitor bank breaking current

    time

    20000

    13

    Rated single capacitor bank breaking current

    A

    630

    14

    Rated back-to-back capacitor bank breaking current

    A

    400

    15

    Out-of-phase earth fault breaking current

    A

    27.4

    16

    The moving and static contacts allow the accumulated thickness of wear

    mm

    3





    Structure And Mounting Dimensions

    ZN63 vcb

    Product Real Shot

    indoor vacuum circuit breakerVS1 vacuum circuit breaker
