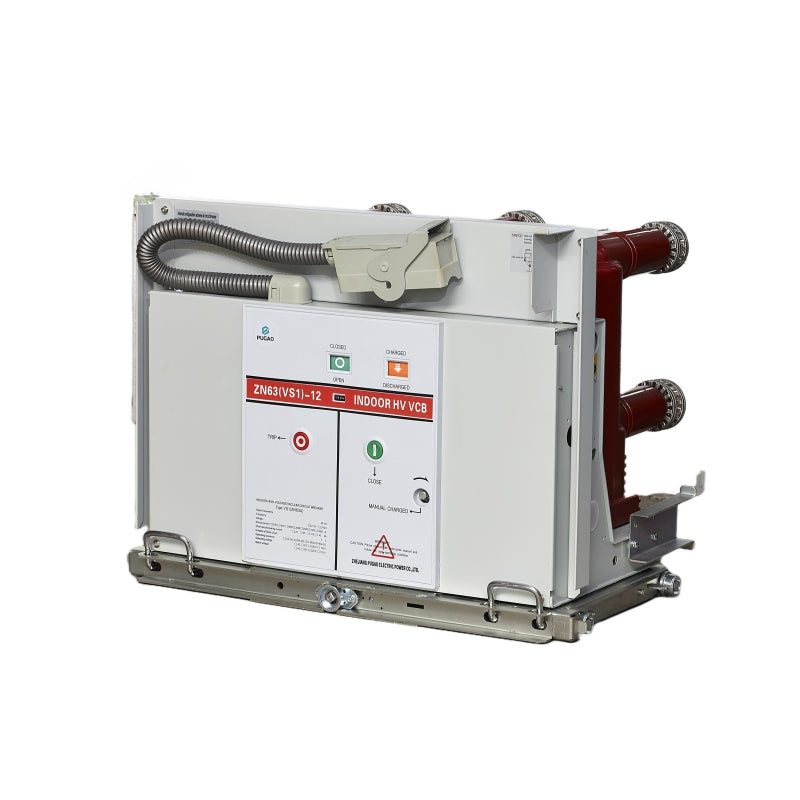

VS1 Side Mounted Vacuum Circuit Breaker
The biggest advantage of VS1 side-mounted vacuum circuit breaker is miniaturization, it can be installed in a small switch cabinet, and its minimum volume can reach 200MM, that is to say, it can be installed in a switch cabinet larger than 200MM.
Model Description
Z:Vacuum circuit breaker
N:Indoor
63:Design Number
12:Rated voltage:12kV
▢: M:Permanent magnet mechanism/blank(mannual type)
▢: Rated current:630A、1250A、1600A
▢: Rated short-circuit breaking current:20kA、25kA、31.5kA、40kA
Working Environment：
1. The ambient air temperature does not exceed + 40°C, the daily average temperature does not exceed +35°C, and the lowest ambient temperature. Air temperature is -15°C. The effect of solar radiation can be ignored.
2. The altitude should not exceed 1000m.
3. Vibration or ground movement from outside the switchgear and control equipment and the normal operation of the equipment formula has no apparent relationship.
4. The surrounding air is not significantly affected by dust, smoke, corrosive and/or flammable gases, vapors air or salt spray pollution.
Main Technical Parameters
|
Number |
Parameter |
Unit |
Value |
||||
|
1 |
Rated voltage |
kV |
12 |
||||
|
2 |
Rated frequency |
Hz |
50 |
||||
|
3 |
Rated insulation level |
Rated short-time power frequency withstand voltage (1min) |
Hz |
42 |
|||
|
Rated lightning impulse withstand voltage |
kV |
75 |
|||||
|
4 |
Rated current |
A |
630 |
630 |
1250 |
1600 |
|
|
5 |
Rated short-circuit breaking current |
kA |
20 、25 、31.5 、40 |
||||
|
6 |
Rated short-time withstand current (rated short-time thermal stability current) |
kA |
20 、25 、31.5 、40 |
||||
|
7 |
Rated short-circuit making current |
kA |
50、 63、 80 、100 |
||||
|
8 |
Rated peak withstand current (rated dynamic stable current) |
50、 63、 80 、100 51、 |
|||||
|
9 |
Rated short-circuit duration (rated thermal stabilization time) |
S |
4 |
||||
|
10 |
Rated short-circuit current breaking times |
O-0.3s-CO--180s-CO |
|||||
|
O-180s-CO-180s-CO( 40kA) |
|||||||
|
11 |
Mechanical life |
times |
30、20( 40kA) |
||||
|
12 |
Rated single capacitor bank breaking current |
times |
20000 |
||||
|
13 |
Rated single capacitor bank breaking current |
A |
630 |
||||
|
14 |
Rated back-to-back capacitor bank breaking current |
A |
400 |
||||
|
15 |
Out-of-phase earth fault breaking current |
A |
27.4 |
||||
|
16 |
The moving and static contacts allow the accumulated thickness of wear |
mm |
3 |
||||
Structure And Mounting Dimensions
FAQ:
Q1:Could I add insulating plates on VS1 indoor vacuum circuit breaker ?
A1: Yes, insulating plates can be increased according to your needs.
Q2:In addition to side mounted vacuum breakers，do you have front mounted vacuum breakers?
A3:Yes ,we have fixed type indoor vacuum circuit breakers and withdrawable type (chassis trucks type)indoor high voltage vcb.
A3:Could I use our own logo or brand?
Q3:Yes,we accept ODM/OEM service.
