Gw9-12 Outdoor High Voltage Isolating Switch

Gw9-12 Outdoor High Voltage Isolating Switch is used in the power system with a frequency of 50Hz and a rated voltage of 12kV, as a circuit breaker when there is voltage and no load.

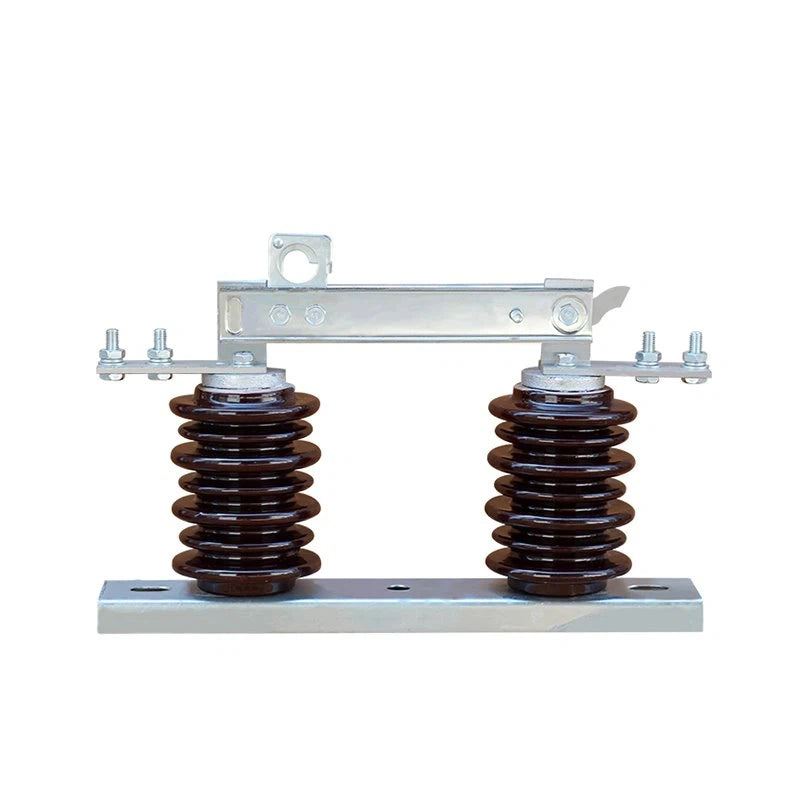

Gw9-12 Outdoor High Voltage Isolating Switch is composed of base, pillar insulator, conductive part, safety hook and other parts. Each phase of the knife is composed of two conductive blades. There are compression springs on both sides of the blades. Adjusting the height of the springs can obtain the contact pressure required by the switch.

Model Description

G:Isolating switch

W:Outdoor

9:Design Number

12:Rated voltage:12kV

▢:With grounding switch

(W）:Anti-fouling type

▢:Rated current:200A、400A、600A、800A、1000A

Working Environment：

1. The altitude should not exceed 1000m.

2. The maximum upper limit of ambient temperature is +40℃, and the lower limit is -25℃.

3. The wind speed should not exceed 35m/s.

4. The earthquake intensity should not exceed 8 degrees.

5. The installation site should be free from frequent violent vibrations.

6. The installation site should be free of gases, vapors, chemical deposits, salt mist, dust and other explosive and corrosive substances that seriously affect the insulation and conductivity of the isolating switch.
