    GN30-12

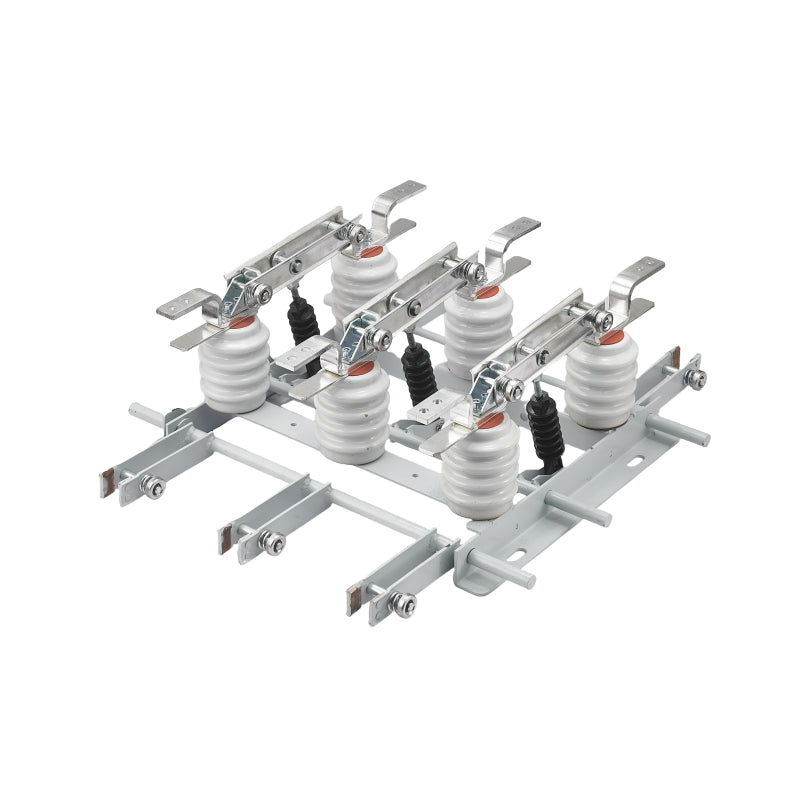

    GN30-12 indoor high voltage  disconnect switch.. is the rotation touch knife type switch disconnector , main structure lay at top and down platforms , fixed the two sets of insulator contacts , open and close knife switch by rotate the touch knife.



    Our GN30-12 indoor high voltage disconnect switchis an indoor electric apparatus of rated voltage 12kV, three-phase AC50/60Hz. It is used to make the break and transfer current for HV electric apparatus under situations with voltage and no-load. The switch applies rotary moving contact which is mounted on the switchgear easily. It adopts wall through the installation as well.



    Model Description

    GN30-12 indoor high voltage disconnect switch

    G:Isolating switch

    N:Indoor

    30:Design Number

    12:Rated voltage:12kV

    ▢:With grounding switch

    (W）:Anti-fouling type

    ▢:Rated current:400A、630A、1000A、1250A、1600A、3150A



    Working Environment：



    ◆Installation method: side-mounted, middle-mounted

    ◆Ambient air temperature: upper limit +40C, lower limit -30C; ;

    ◆Altitude: ≤2000m (if the altitude needs to be increased, the rated insulation level should be increased accordingly);

    ◆Wind pressure: no more than 700Pa (equivalent to wind speed of 34m/s);

    ◆Amplitude: earthquake intensity 8 degrees;

    ◆Contamination level: Class I;

    ◆Maximum daily temperature difference: no more than 25C.





    Main Technical Parameters



    Item

    Model And Specification

    GN30-12/400-12.5

    GN30-12/630-20

    GN30-12/1000-31.5

    GN30-12/1250-31.5

    GN30-12/(1600-3150)-40

    GN30-12D/400-12.5

    GN30-12D/630-20

    GN30-12D/1000-31.5

    GN30-12D/1250-31.5

    GN30-120/(1600-3150)-40

    Rated voltage(kV)

    12

    Rated current(A)

    400

    630

    1000

    1250

    1600-3150

    Rated short-time withstand current(kA)

    12.5

    20

    31.5

    40

    Rated short-circuit duration(s)

    4

    Rated peak withstand current(kA)

    31.5

    50

    80

    100

    Rated insulating level

    Rated 1min. PF

    phase to phase/ to earth: 42, across open contacts: 49

    withstand voltage(kV)
    Lightning impulse

    phase to phase/ to earth: 75, across open contacts: 85





    Structure And Mounting Dimensions
