GN24-12 Indoor High Voltage Disconnect Switch

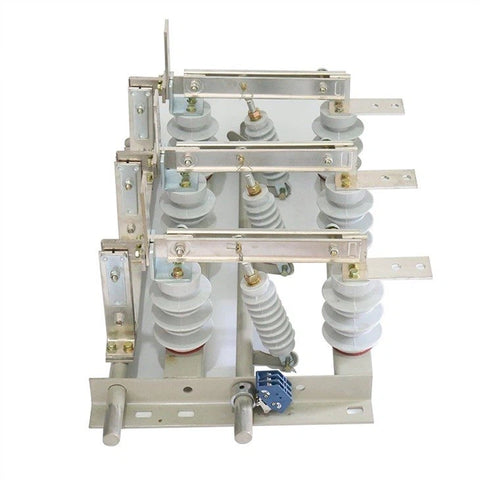

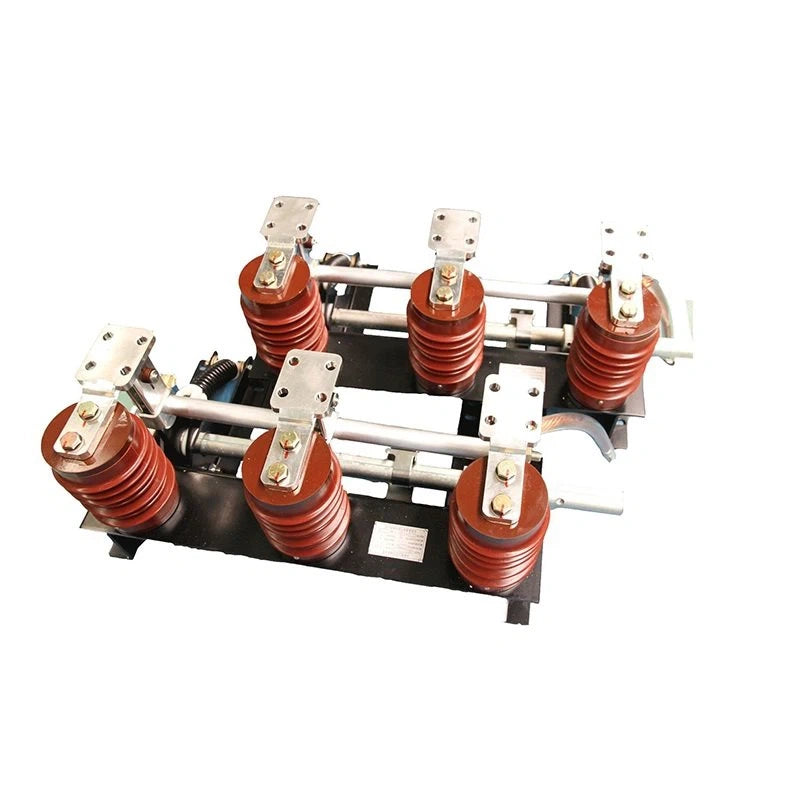

GN24-12 indoor high voltage  disconnect switch. applies to power system of rated voltage 12KV, AC 50Hz, it is used to break and make circuit under no-load. there are additional pollution abatement type, high altitude type and electrified display..

Our GN24-12 indoor high voltage disconnect switchis an indoor electric apparatus of rated voltage 12KV, three-phase AC 50/60Hz which is used to make, break and transfer between lines under situations with voltage and no-load. The innovative structure which the disconnecter is also fabricated with an earthing switch. The switch also can be mounted through the wall.

Model Description

G:Isolating switch

N:Indoor

24:Design Number

12:Rated voltage:12kV

▢:With grounding switch

(W）:Anti-fouling type

▢:Rated current:400A、630A、1000A、1250A

Working Environment：

◆Installation method: side-mounted, middle-mounted

◆Ambient air temperature: upper limit +40C, lower limit -30C; ;

◆Altitude: ≤2000m (if the altitude needs to be increased, the rated insulation level should be increased accordingly);

◆Wind pressure: no more than 700Pa (equivalent to wind speed of 34m/s);

◆Amplitude: earthquake intensity 8 degrees;

◆Contamination level: Class I;

◆Maximum daily temperature difference: no more than 25C.
