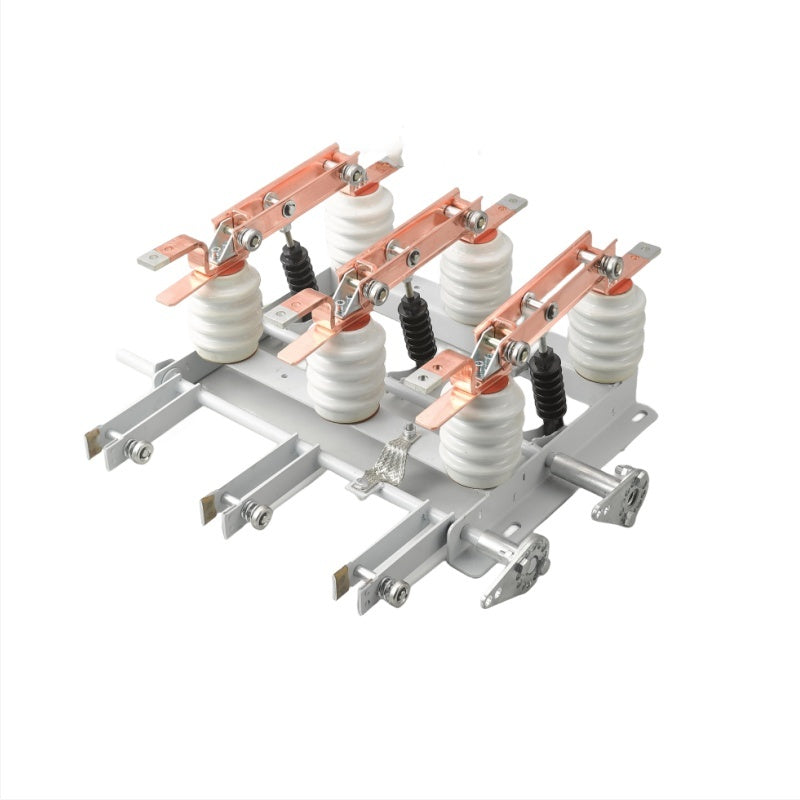

GN19-12 Indoor High Voltage Disconnect Switch

GN19-12 indoor high voltage  disconnect switch  is a high-voltage switchgear. It is used in power systems with rated voltage of 12kV and AC 50Hz and below.

The CS6-1 manual operating mechanism of GN19-12 indoor high voltage disconnect switch is used to divide and close circuits under the condition of voltage but no load. There are also derivatives.Anti-fouling type, plateau type and installation of electrified display device, etc.

Model Description

G:Isolating switch

N:Indoor

19:Design Number

12:Rated voltage:12kV

(C):Through Wall

▢:Rated current:400A、630A、1000A、1250A

▢:Rated thermal stability current

Working Environment：

1. The altitude does not exceed 1000m;

2. Ambient air temperature: -25°C~ +40°C;

3. The relative humidity of the surrounding environment: the daily average is not more than 95%, the daily average

The value is not greater than 90%;

4. The seismic intensity does not exceed 8 degrees;

5. Installation site: no fire, flammable, explosive, serious pollution, chemical

Corrosion and severe vibration places.

Main Technical Parameters

Structure And Mounting Dimensions

Remarks: The distance between phases of the isolating switch is 210,230,250,275mm and other specifications. Users can customize the distance and installation size according to their needs. If there are other special requirements. they can be negotiated with out company.
